Joining Ubuntu-Based Linux Devices to Windows Server 2025 Active Directory (Winbind Method)

Use this guide to join a Debian/Ubuntu-based Linux system (like KDE Neon, Mint or Zorin) to a Windows Server 2025 AD domain using winbind, samba, and Kerberos.

📋 Prerequisites

  • Windows Server 2025 configured as Domain Controller
  • Domain name
  • AD server IP
  • Domain join account
  • Linux client with sudo access

1. Set hostname

  • Run:
sudo hostnamectl set-hostname <your-hostname>
sudo nano /etc/hosts

  • Replace any instance of the old hostname.

  • Reboot:

sudo reboot

2. Set dns to the ad server

  • Point /etc/resolv.conf to your server:
sudo nano /etc/resolv.conf
  • Add:
nameserver <server-IP>
search <domain-name>

3. Install required packages

  • Run:
sudo apt update
sudo apt install samba krb5-user winbind libpam-winbind libnss-winbind -y
  • When prompted the Kerberos installer, enter your default realm.
  • Leave other prompts blank and press Enter.

4. Configure Kerberos

sudo nano /etc/krb5.conf

  • Update to:
[libdefaults]
    default_realm = <domain-name>
    dns_lookup_realm = false
    dns_lookup_kdc = true

5. Configure Samba

  • Backup and replace /etc/samba/smb.conf:
sudo cp /etc/samba/smb.conf /etc/samba/smb.conf.bak
sudo nano /etc/samba/smb.conf
  • Paste in:

[global]
  workgroup = <workgroup>
  realm = <domain-name>
  security = ads
  client signing = yes
  client use spnego = yes
  kerberos method = secrets and keytab
  log file = /var/log/samba/%m/log
  log level = 1
  winbind refresh tickets = yes
  winbind use default domain = yes
  winbind offline logon = yes
  idmap config * : backend = tdb
  idmap config * : range = 10000-20000
  template shell = /bin/bash
  template homedir = /home/%U

How to Select all in Nano Text Editor
  1. Press "Alt + Backslash" keys together. This moves the cursor to the start of the file.
  2. Press "Ctrl + 6" keys together. This sets a mark at the current cursor position.
  3. Press "Alt + Forward Slash" keys together. This moves the cursor to the end of the file.
  4. Press "Ctrl Shift K keys together. This will clear all selected text.

6. Configure nss

sudo nano /etc/nsswitch.conf
- Add winbind to these lines:

passwd:         compat winbind
group:          compat winbind
shadow:         compat

7. Restart services

sudo systemctl restart smbd nmbd winbind
  • Enable on boot:
sudo systemctl enable winbind

8. Test kerberos and join domain

  • Test authentication:
kinit <domain-user>

You'll most likely see a password expiration message, that's fine.

  • Then join:
sudo net ads join -U <domain-user>

Seeing DNS update failed is normal.

9. Test identity resolution

wbinfo -u     # List domain users
wbinfo -g     # List domain groups
getent passwd <domain-user>

10. Enable domain login and home creation

  • Edit PAM and enable home dir creation:
sudo pam-auth-update

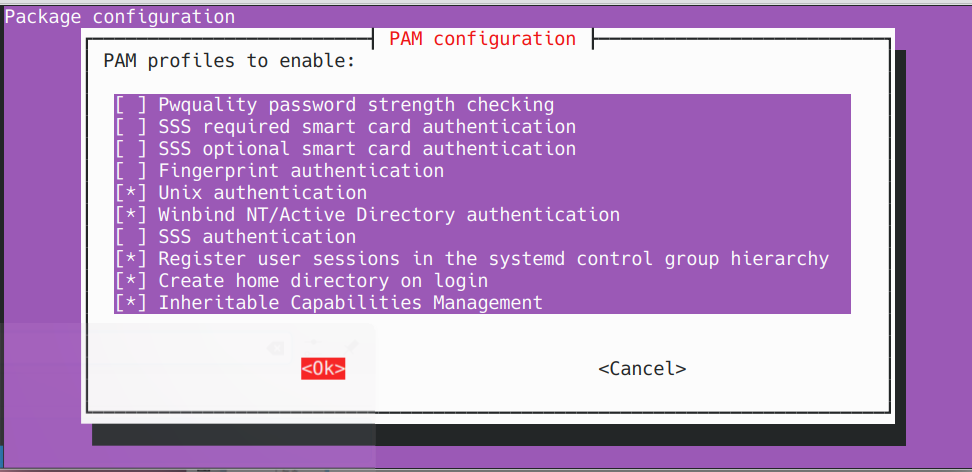

Below is what your pam settings should look like:

Pam settings screenshot


11. Reboot and log in

sudo reboot
- Log in with domain user credentials.
- The system will create a home folder for the user.


Success! Your Linux device is now joined to the Windows Server 2025 Active Directory domain using the winbind.


🛠️ Troubleshooting & Common Issues

* kinit: Cannot find KDC for realm "<REALM>"

Fix:
- Ensure /etc/resolv.conf points to your DC IP
- Verify default_realm is UPPERCASE in /etc/krb5.conf
- Test DNS:

dig <domain-name>

* net ads join returns DNS update failed!

Fix:
Usually safe to ignore if you can log in and resolve domain names.

* Login fails after join

Fix:
- Ensure winbind is running:

sudo systemctl status winbind
- Re-run:
sudo pam-auth-update

* getent passwd <domain-user> returns nothing

Fix:
- Check /etc/nsswitch.conf has winbind on the correct lines.
- Restart windbind:

sudo systemct restart winbind

* winbind -u and -g return nothing

Fix:
- Validate /etc/samba/smb.conf and /etc/krb5.conf formatting.
- Ensure realm and workgroup are correct.
